Dienmern Brand gas detector PM2.5 analyzer Real Time Air Monitor air pollution detector Dust monitor tester

  • 1 - 99 Pieces
    $23.00
  • 100 - 499 Pieces
    $21.00
  • 500 - 999 Pieces
    $19.00
  • >=1000 Pieces
    $17.00
Measurement Range:
PM2.5 Temperature humidity
Accuracy:
high
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 5 6 - 1000 1001 - 10000 >10000
Est. Time(days) 5 20 35 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples:
$23.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Dienmern
Model Number:
DM103B
Product name:
PM2.5 Air quality detector
Sensor style:
Laser
Testing:
PM2.5,Temperature humidity
Power supply:
Rechargeable Lithium Battery
Material:
ABS
Weight:
168g
Color:
White
Warranty:
12 Months
Certificate:
CE.Rohs.ISO9001
Detection range:
0-999 ug/M3
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Gift box package
Port
ShenZhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5 6 - 1000 1001 - 10000 >10000
Est. Time(days) 5 20 35 To be negotiated
Product Description


Dienmern Brand gas detector PM2.5 analyzer Real Time Air Monitor air pollution detector Dust monitor tester


Product namer
PM2.5 Air quality detector
Measure
PM2.5, Temperature, Humidity
PM2.5 technolology
Laser Scattering
Processor
ARM ,High-speed complex calculations
Detection range
PM2.5 (0-999 ug/M³)
Power supply
rechargeable Li-battery 1000mah
Material
ABS
Color
White
Product size
100*95*47MM
Display
LCD Screen colorful
Product Description :
This product is a simple air quality detector that detects
Particulate Matter PM2.5, Temperature, and Humidity.
As a scientific air quality detection device, it combines
dust air sensor with a built-in fan to allow real-time
monitoring of PM2.5 ,temperature, and humidity on its
digital LCD display.

Product Specifications :
Display method : Digital tube display
Atmospheric pressure: 86Kpa - 106Kpa
Detection method for PM: Laser Scattering
Sampling time: 1.5 seconds
Product Size: 100 x 95 x 47 mm
Detection PM2.5 : 0-999 ug/m³
Detection temperature: -10°C to 50°C
Relative humidity: 20% - 85%
Storage temperature: -10°C to 60°C;
Concentration unit for PM2.5 : ug/m³
Power source: Lithium battery with 1000 mAh capacity;
5V DC power charging via micro USB port
Product weight : 168 g

Precautions :
Avoid covering the air intake areas during use to avoid
inaccurate measurements.
Avoid use of solvents to clean the product as residual
fumes will skew air quality readings.
Avoid water or other liquids near the product to avoid
electrical damage.
Do not allow unauthorized modification or repair of this
product.

Features :
-Test variables: PM2.5 ,temperature, humidity
-Large 1000mAh capacity Lithium battery
-On-board fan to draw in ambient air for more accurate
real-time results
-5V Micro USB charging
-Low battery warning

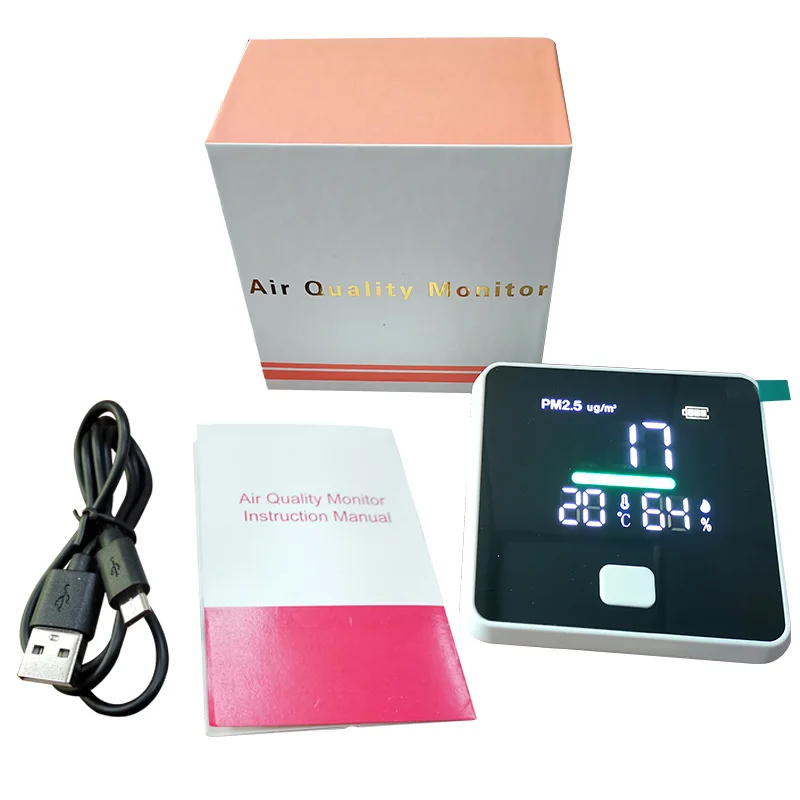

What are included :
Air Quality monitor x 1
Micro USB charging cable x 1
Product Manual x 1

Certificates :

We are True Factory Locate in Shenzhen City China . We provide OEM ,ODM Service .


FQA

1 Q: What the test index are include for air quality monitor?
A : PM2.5: is main for smog(PM1.0 and PM10 are the same);
HCHO: is for formaldehyde;
TVOC: is main for benzene,etc Volatile organic compounds;
AQI: is for Integrated air quality index.

2. Q: What is the safe range for formaldehyde (HCHO) and TVOC?
A : HCHO≤ 0.10mg / m3
TVOC≤ 0.60mg / m3
According to ("indoor air quality standards" GB / T 18883-2002 and
GB 50325-2001 Class II civil construction).

3 Q: What is the standard range for PM2.5?
A: Good 0~12
Medium 12~35
safe value 35~70
Unhealthy more than 70

4 Q: Why do I need to calibrate(Just HCHO and TVOC need to calibration, PM2.5 and AQI no need)?
A :Our products work in the form of outdoor formaldehyde-free air sampling as a benchmark, and then get indoor air formaldehyde
content as a comparison, so the new machine products for a long time not used, the detection of environmental temperature changes,
need to calibrated first and then tested, the value of this calibration for the subsequent detection of the accuracy of a great
relevance.Calibration environment must avoid spices,perfumes, paint, cigarettes, air fresheners,alcohol and other chemical
pollutants, so as not to damage the sensor.

5.Q: Why PM2.5 readings with the published value on the site is not the same?
A : Because the location and conditions of the test is difficult to reconcile with the weather station in the city there are
several sampling points, each sampling point measured data are also very different, the sampling point of the location is strictly
required; height 3 to 30 meters, air circulation, can not be close to the chimney, furnace and other obvious sources of pollution.
And there are no high-rise buildings, trees or other obstructions that can impede the flow of ambient air around the instrument.

6 Q: Why is the PM2.5 test value always changing?
A : PM2.5 data are changing all the times, with the air, wind, humidity and other environmental factors change, in the room
smoking, cooking fumes, car exhaust emissions, coal, chimney,furnace Such as pollution sources will change the PM2.5 value of this
area, resulting in differences in the detection data.

7 Q: Why does the products make a sound when working?
A : As PM2.5 detection need to collect a lot of mobile air,
the inner fan needs strong operation to ensure accurate detection.

8 Q: How much range of detection of formaldehyde concentration detector,how many square meters?
A : Test area≤ 50m3, room should be set 1~3 testing points;
50m3 ≤ Test area≤ 100m3, room should be set 3~5 testing points;
≥100m3, the points should more than 5 ponits.
Testing points is on a diagonal or plum blossom evenly distributed, would more better.
The height of the sampling point: in principle,consistent with the human breathing.
Relative height of 0.5m ~ 1.5m between.

9 Q: which kinds of air index exceeded, would lead to Alarm sound?
A: Just HCHO data more than 0.10mg / m3, would lead to Beep sound.
