Dienmern Air Quality Monitor Homeuse Portable Air Pollution detector

FOB Reference Price:Get Latest Price
  • 1 - 50 Units
    US $45.00
  • 51 - 300 Units
    US $40.00
  • 301 - 1000 Units
    US $38.00
  • >=1001 Units
    US $37.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Dienmern
Model Number:
DM106A
Product name:
air pollution quality tester with screen
Material:
ABS with TFT Screen
Size:
164*69*44MM
Color:
Black
Power supply:
rechargeable Li-battery
PM2.5 Sensor technolology:
Laser Scattering
HCHO/TVOC technolology:
Semiconductor sensor
Measure:
PM2.5 PM1.0 PM10 TVOC HCHO TEMP HUM
HCHO:
0.001-1.999Mg/M3
TVOC:
0.001-9.999Mg/M3
Supply Ability
Supply Ability:
3000 Unit/Units per Day
Packaging & Delivery
Packaging Details
gift box
Port
shenzhen
Lead Time :
Quantity(Units) 1 - 100 101 - 500 501 - 3000 >3000
Est. Time(day) 10 15 25 To be negotiated

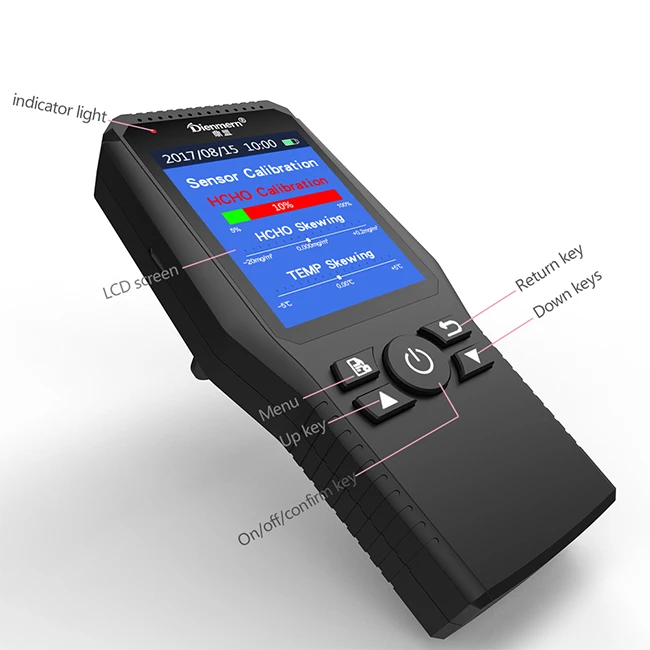

Homeuse Portable Air Pollution Air Quality Monitor -Dienmern brand


-Material : ABS with TFT Screen
-Color: Black
-Product size:164*69*44MM

-PM2.5 Sensor technolology : Laser Scattering

-HCHO/TVOC technolology :Semiconductor sensor

-Processor : ARM ,High-speed complex calculations

-Temperature and Humidity sensor, detect Temp,Hum.

-LCD screen display,24 hours real time monitoring.
-Detection data range:
PM2.5(0-1000)
HCHO(0.001-1.999Mg/M3)
TVOC(0.001-9.999Mg/M3)







Standard Accessories :
-Main device
-USB Charging cable
-User Manual









Questions and Answers :



Q: Why do I need to calibrate?
A: Our products work in the form of outdoor formaldehyde-free air sampling as a benchmark, and then get indoor air formaldehyde content as a comparison, so the new machine products for a long time not used, the detection of environmental temperature changes need to change First calibrated and then tested, the value of this calibration for the subsequent detection of the accuracy of a great relevance. Calibration environment must avoid spices, perfumes, paint, cigarettes, air fresheners, alcohol and other chemical pollutants, so as not to damage the sensor.



Q: the test value has been 0, spray perfume will rise?
A: YES.



Q: How much range of detection of formaldehyde concentration detector,how many square meters?
A:
1. The principle is less than 50m3 ,the room should be set 1 to 3 points;50 ~ 100m3 Set 3 to 5 points;More than100m3 at least 5 points. On a diagonal or plum blossom evenly distributed.
2.Sampling points should avoid the ventilation, from the wall distance greater than 0.5m.
3.The height of the sampling point: in principle, consistent with the human breathing.Relative height of 0.5m ~ 1.5m between.



Q: Why PM2.5 readings with the published value on the site is not the same?
A: Because the location and conditions of the test is difficult to reconcile with the weather station, the weather station in the city there are several sampling points, each sampling point measured data are also very different, the sampling point of the location is strictly required; height 3 to 30 meters, air circulation, can not be close to the chimney, furnace and other obvious sources of pollution. And there are no high-rise buildings, trees or other obstructions that can impede the flow of ambient air around the instrument.



Q: Why is the PM2.5 test value changing?
A: PM2.5 data are changing at all times, with the air, wind, humidity and other environmental factors change, in the room smoking, cooking fumes, car exhaust emissions, coal, chimney, furnace Such as pollution sources will change the PM2.5 value of this area, resulting in differences in the detection data.



Q: Why is the product sounding when working?
A: PM2.5 detection need to collect a lot of mobile air, in order to ensure accurate detection of the fan needs strong operation, so a little sound is normal.



Q: What is the standard for formaldehyde (HCHO)?
A: ≤ 0.10mg / m3 ("indoor air quality standards" GB / T18883-2002)



Q: What is the standard for total volatile organic compounds (TVOC)?
A: ≤ 0.6mg / m3 (GB / T 18883-2002 and GB 50325-2001 Class II civil construction)
