Dienmern indoor air quality monitor air pollution monitoring measure PM2.5 PM1.0 PM10 HCHO TVOC

FOB Reference Price:Get Latest Price
  • 1 - 499 Units
    US $50.00
  • 500 - 999 Units
    US $38.00
  • 1000 - 1999 Units
    US $35.00
  • >=2000 Units
    US $32.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Dienmern
Model Number:
DM502
Color:
White
Test range:
PM2.5+ HCHO+TVOC+ AQI+PM1.0+PM10
Material:
ABS with TFT Screen
Size:
100*95*47mm
Sensor:
Laser
Power supply:
rechargeable Li-battery
Charging Time:
3-4Hours
HCHO:
0.001-1.999Mg/M3
TVOC:
0.001-9.999Mg/M3
PM2.5:
0-1000
Supply Ability
Supply Ability:
2000 Unit/Units per Day
Packaging & Delivery
Packaging Details
Gift box per Unit
Port
shenzhen
Lead Time :
Quantity(Units) 1 - 500 501 - 1000 1001 - 5000 >5000
Est. Time(day) 15 20 30 To be negotiated

Dienmern brand indoor air quality monitor  air pollution monitoring



Test range : PM2.5+ HCHO+TVOC+ AQI+PM1.0+PM10
-Laser sensor
-TFT LCD screen display
-It can be used in office, indoor and fitment pollution detection
-24 hours real time monitoring
-Power supply:Built in Li-battery 1000mAh
-Material : ABS with TFT Screen
-Color:White
-Size : 155*87*35MM
-Detection data range:
PM2.5(0-1000)
HCHO(0.001-1.999Mg/M3)
TVOC(0.001-9.999Mg/M3)

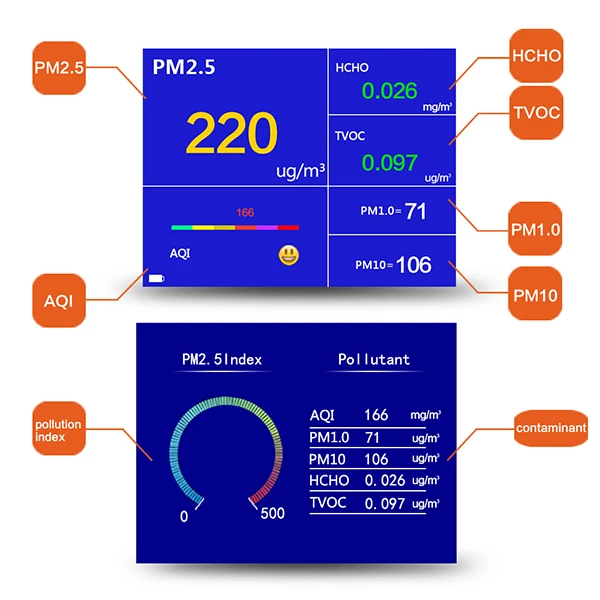

Four Interfaces for switching :





What are included :

DM502 Main Unit

English manual

USB charging cable





White Gift box Package :






QA
Q: Why do I need to calibrate?
A: Our products work in the form of outdoor formaldehyde-free air sampling as a benchmark, and then get
indoor air formaldehyde content as a comparison, so the new machine products for a long time not used, the
detection of environmental temperature changes need to change First calibrated and then tested, the value of this
calibration for the subsequent detection of the accuracy of a great relevance. Calibration environment must avoid
spices, perfumes, paint, cigarettes, air fresheners, alcohol and other chemical pollutants, so as not to damage the
sensor.


Q: How much range of detection of formaldehyde concentration detector,how many square meters?
A:
1. The principle is less than 50m3 ,the room should be set 1 to 3 points;50 ~ 100m3 Set 3 to 5 points;More
than100m3 at least 5 points. On a diagonal or plum blossom evenly distributed.
2.Sampling points should avoid the ventilation, from the wall distance greater than 0.5m.
3.The height of the sampling point: in principle, consistent with the human breathing.Relative height of 0.5m ~
1.5m between.

Q: Why PM2.5 readings with the published value on the site is not the same?
A: Because the location and conditions of the test is difficult to reconcile with the weather station, the weather
station in the city there are several sampling points, each sampling point measured data are also very different, the
sampling point of the location is strictly required; height 3 to 30 meters, air circulation, can not be close to the
chimney, furnace and other obvious sources of pollution. And there are no high-rise buildings, trees or other
obstructions that can impede the flow of ambient air around the instrument.

Q: Why is the PM2.5 test value changing?
A: PM2.5 data are changing at all times, with the air, wind, humidity and other environmental factors change, in
the room smoking, cooking fumes, car exhaust emissions, coal, chimney, furnace Such as pollution sources will
change the PM2.5 value of this area, resulting in differences in the detection data.

Q: Why is the product sounding when working?
A: PM2.5 detection need to collect a lot of mobile air, in order to ensure accurate detection of the fan needs
strong operation, so a little sound is normal.

Q: What is the standard for formaldehyde (HCHO)?
A: ≤ 0.10mg / m3 ("indoor air quality standards" GB / T18883-2002)

Q: What is the standard for total volatile organic compounds (TVOC)?
A: ≤ 0.6mg / m3 (GB / T 18883-2002 and GB 50325-2001 Class II civil construction)

Standard Accessories :
-Main device DM306
-USB Charging cable
-User guide

Certificates :
